SYManeuver Class Reference

Represents a maneuver, which is the action where you leave one street segment and enter the next one. More...

#import <SYRoutingManeuver.h>

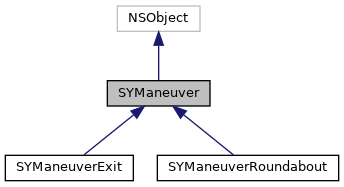

Inheritance diagram for SYManeuver:

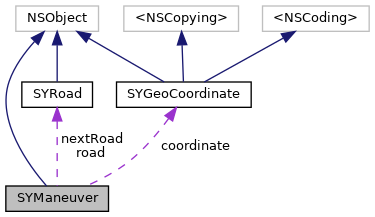

Collaboration diagram for SYManeuver:

Properties
SYGeoCoordinate *	coordinate
	The SYGeoCoordinate of the maneuver. If this maneuver contains one or more transit route elements, this coordinate will be the same as the coordinate of the 1st transit route element. More...
SYManeuverType	type
	Maneuver type. See the available SYManeuverType for more info. More...
SYDistance	distanceToManeuver
	Distance to maneuver from current on route position. More...
SYDistance	distanceFromStart
	Distance to maneuver from route start point in meters. More...
NSUInteger	waypointPart
	zero based index to which waypoint part this maneuver belongs. More...
SYRoad *	road
	The name of the road on which the SYManeuver takes place, nil if not available. More...
SYRoad *	nextRoad
	The road to which the SYManeuver leads, nil if not available. If not available, it should be left blank. More...
UIColor *	textColor
	Represents the text color of the maneuver description. More...
UIColor *	backgroundColor
	The background color of the maneuver description. More...
UIColor *	borderColor
	Represents the border color of the maneuver description. More...

Detailed Description

Represents a maneuver, which is the action where you leave one street segment and enter the next one.

Property Documentation

coordinate

- (SYGeoCoordinate*) coordinate

readnonatomicassign

The SYGeoCoordinate of the maneuver. If this maneuver contains one or more transit route elements, this coordinate will be the same as the coordinate of the 1st transit route element.

type

- (SYManeuverType) type

readnonatomicassign

Maneuver type. See the available SYManeuverType for more info.

distanceToManeuver

- (SYDistance) distanceToManeuver

readnonatomicassign

Distance to maneuver from current on route position.

distanceFromStart

- (SYDistance) distanceFromStart

readnonatomicassign

Distance to maneuver from route start point in meters.

waypointPart

- (NSUInteger) waypointPart

readnonatomicassign

zero based index to which waypoint part this maneuver belongs.

road

- (SYRoad*) road

readnonatomicassign

The name of the road on which the SYManeuver takes place, nil if not available.

nextRoad

- (SYRoad*) nextRoad

readnonatomicassign

The road to which the SYManeuver leads, nil if not available. If not available, it should be left blank.

textColor

- (UIColor*) textColor

readnonatomicassign

Represents the text color of the maneuver description.

backgroundColor

- (UIColor*) backgroundColor

readnonatomicassign

The background color of the maneuver description.

borderColor

- (UIColor*) borderColor

readnonatomicassign

Represents the border color of the maneuver description.

---

The documentation for this class was generated from the following file:

• SYRoutingManeuver.h
